Architectural Drafting that’s Permit-Ready
We produce accurate, buildable drawing sets—as-builts, floor plans, elevations, sections, and details—aligned with municipal requirements across the Lower Mainland. Clear drawings mean faster permits and fewer revisions.
Why Choose Us
Permit-Focused
Drawing standards tailored to local municipalities for fewer re-submittals.
Field-Accurate
We verify measurements and existing conditions to minimize RFIs.
Bid-Ready
Clear notes and sheet indexes for reliable contractor pricing.
Our Process
- Discovery & Scope: Define drawings, sheets, and requirements.
- Measure & As-Built: Field visit or client-supplied base files.
- Design Drafting: Plans, elevations, and sections created.

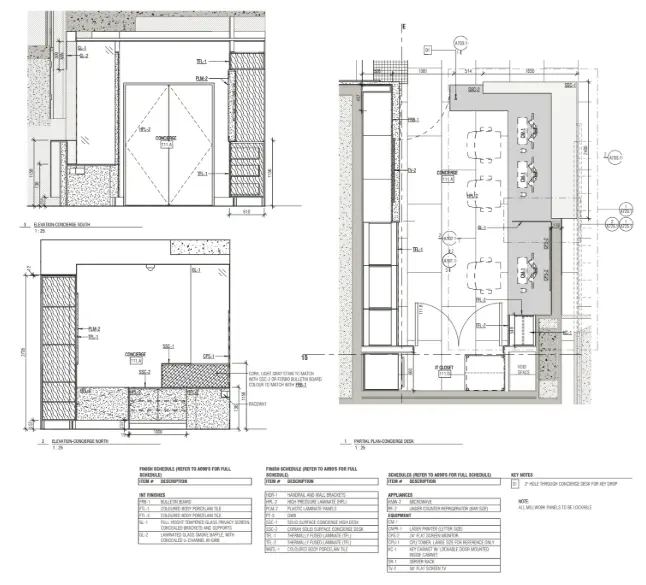

- Permit Set: Add code notes, schedules, and checklists.
- Revisions & Issuance: Final PDFs/DWGs ready for submission.
Deliverables
Drawing Sheets

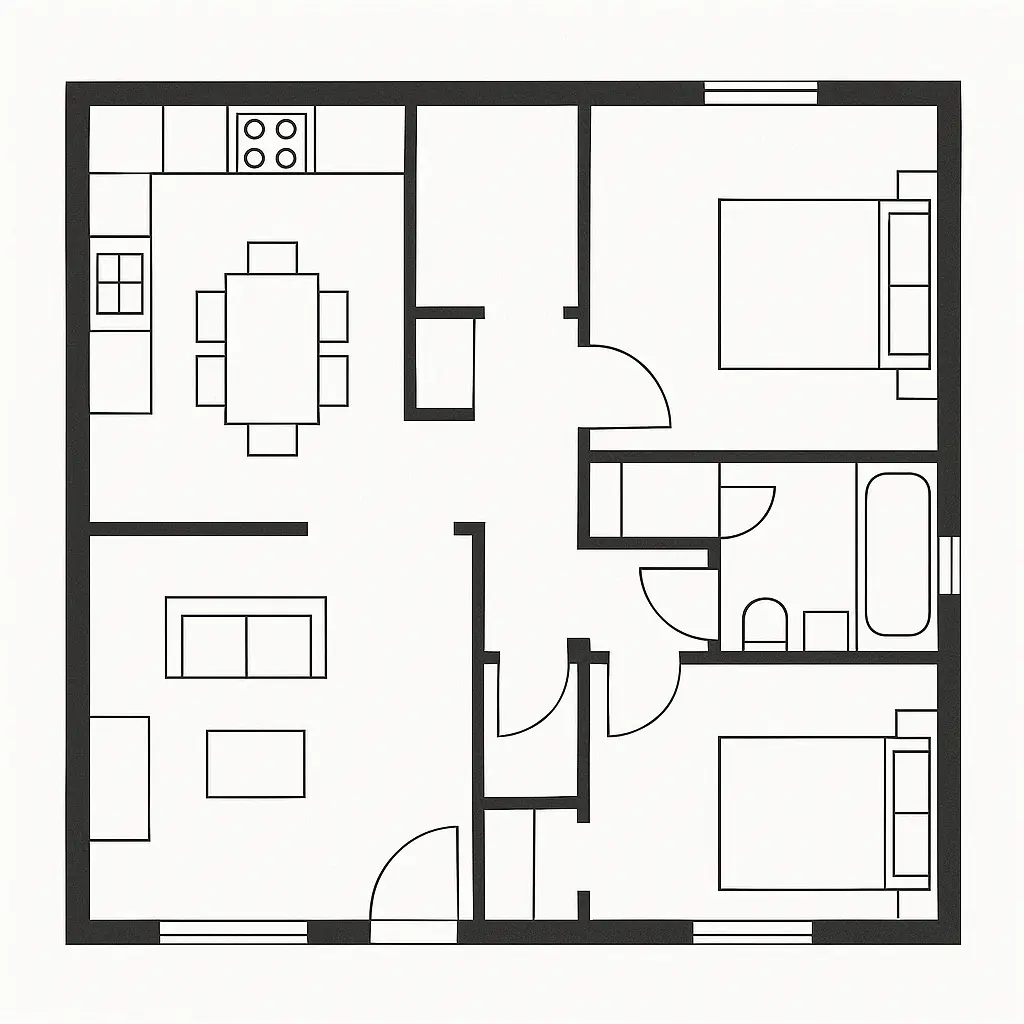

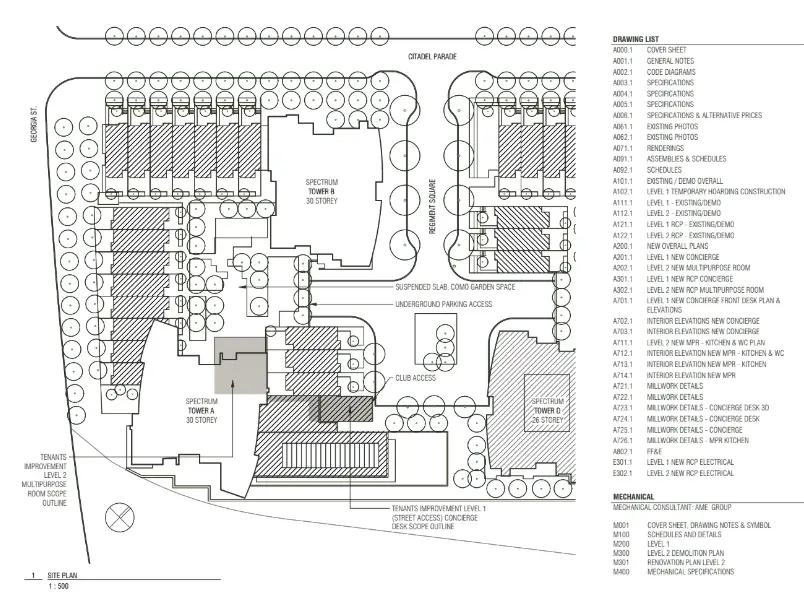

- Site & floor plans

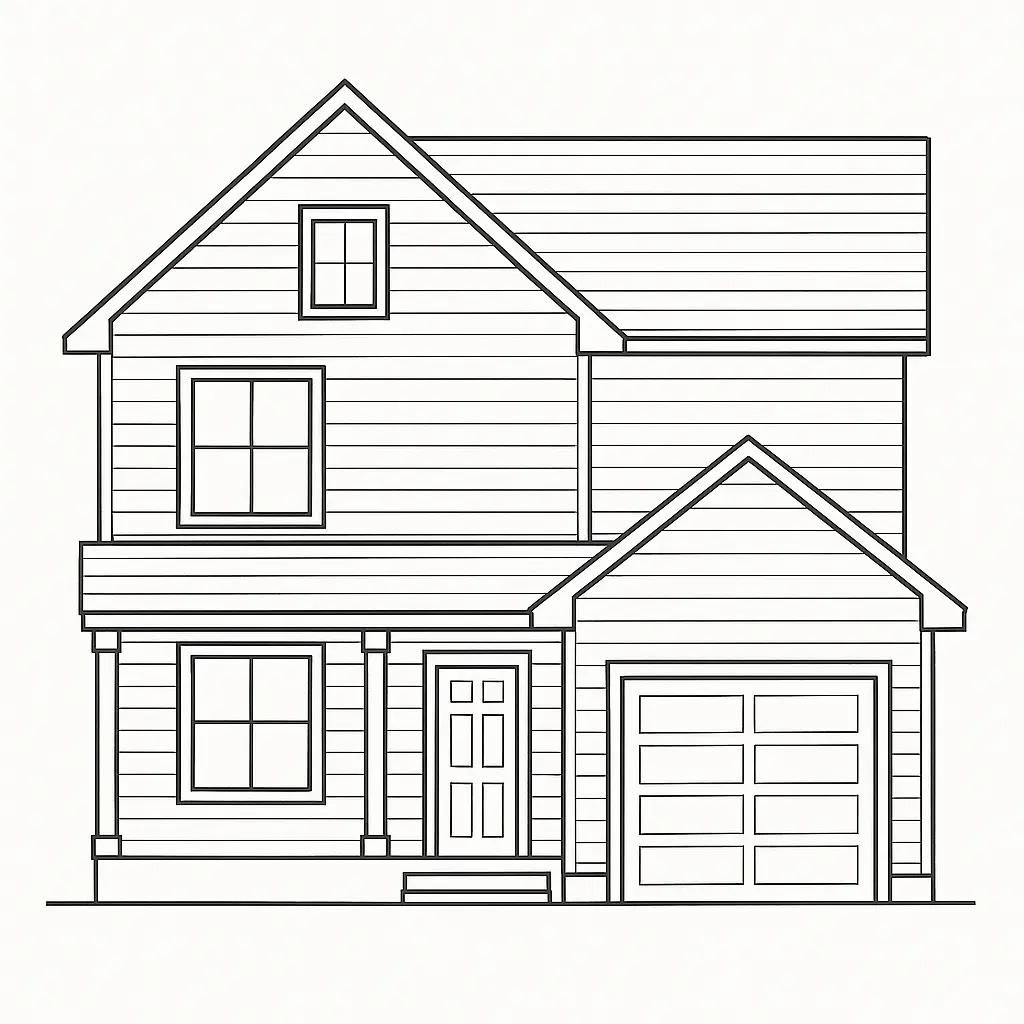

- Elevations & sections

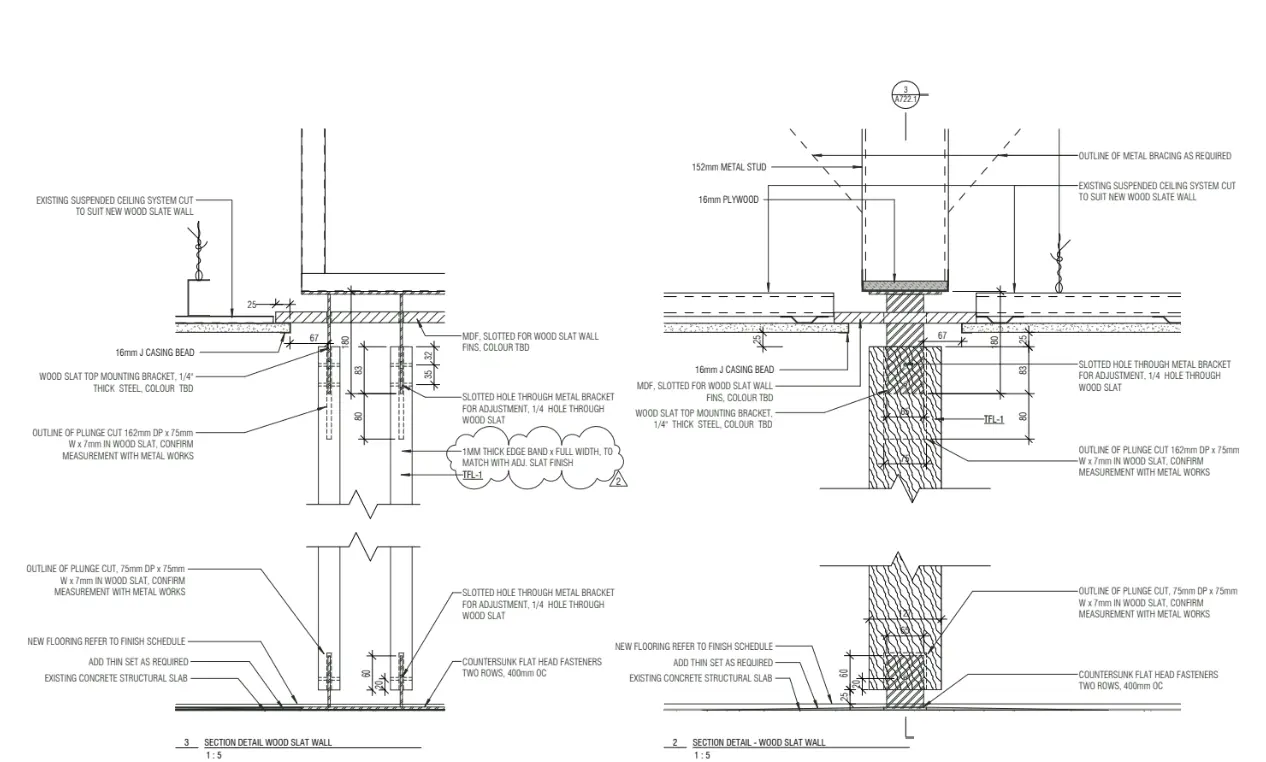

- Schedules & details
Digital Files
- PDF, DWG, and optional RVT
- Issue log & transmittal
Submission Support
- Municipal checklist compliance
- Structural coordination
Typical Timeline & Cost Range
| Service | Timeline | Range (CAD) |
|---|---|---|
| As-Built Architectural Survey (up to 2,000 sq ft) | 3–7 business days | $900 – $2,500 |
| Design Drafting Set | 1–2 weeks | $1,800 – $5,500 |
| Residential Permit Set | 2–4 weeks | $3,500 – $12,000 |
| Commercial Permit Set | 3–5 weeks | $5,000 – $15,000 |
Ready for Permit-Ready Drawings?
Share your address and scope. We’ll reply with a detailed quote, timeline, and sheet list.
